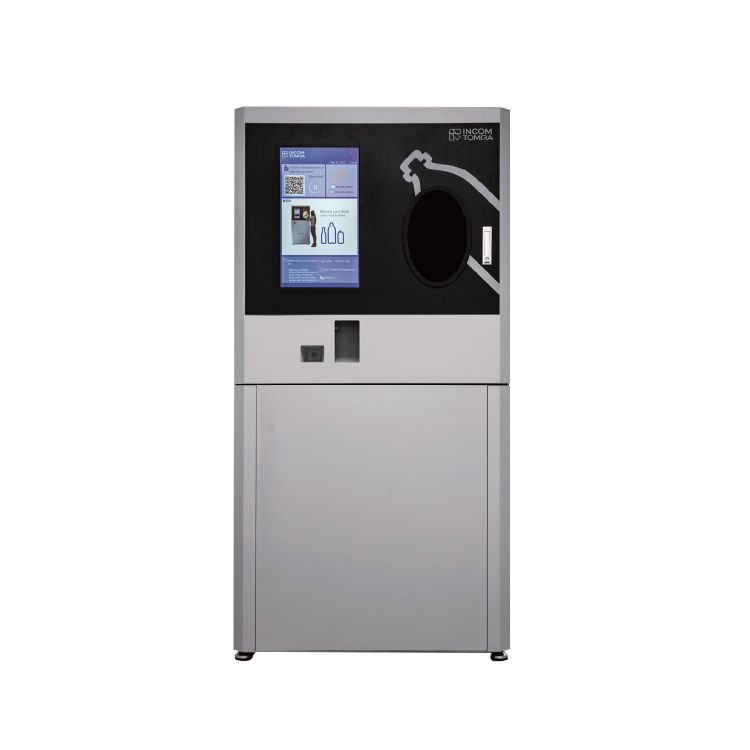

Multiple recognition recycling system-H10

Multiple recognition recycling system-H10

H-10 is a concise and durable model with robust and simple design, On the basis of the multiple recognition system, H10 can satisfy all the basic needs.

Product Details

H-10/H-11 THE ENGAGING

The H-10 and H-11 reverse vending machines (RVM) offer a clean and robust design, with multiple recognition functions, ideal solution for receiving low to medium volumes of containers. H-10 and H-11 take one-way, non-refillable containers (Such as galss bottles). Additionally, H-11 is equipped with a SoftDrop™ safelanding unit to receive refillable containers perfectly.
Both H-10 and H-11 feature a touch screen with a large, 21.5"display, provide a good user experience and suited for branding and promotional activities.


● H-10 & H-11 collect cans and/or plastic bottles (H-11 can also Take refillable containers with SoftDrop™)
● 66% higher storage capacity than its predecessor
● Optical fraud protection
● Intelligent electronic key
● Support for selected E-wallet solutions and system intergration for third-party
● IMP system accessible
● Support for plug-and-play


DURABLE AND ROBUST
• Reinforced and durable steel doors
• Ideal for tight spaces

FLAT CABINET

• Ideal for custom wrapping and brand promoting
• Customizable to fit your brand profile
• Easy to maintenance and cleaning

SAFE RECYCLING

• Double recognition, safe and reliable operation process
• Analyse moving path while provide hands protection

H10 Cost-Effective Basic ModelH10 Cost-Effective Basic ModelH10 Cost-Effective Basic Model


LEADING THE RESOURCE REVOLUTION

35 billion used beverage containers are captured every year by TOMRA's reverse vending machines. TOMRA's total avoided greenhouse gas emission equals the annual emissions from 2 million cars—each driving 10,000 kilometers.


H-10/H-11

DimensionsStorage capacity (appr. figures with shakedown)

H10

Machine weight:

H-10 230 kg / H-11 270kg
Footprint: 0.81m2
UPPER STORAGE 1 (UNMIXED, SINGLE CATAGORY RECYCLE)
Cans:380 cans (0.33L)
Plastic bottles:240 bottles (0.5L)
Plastic bottles:90 bottles (1.5L)
LOWER STORAGE 2 (UNMIXED, SINGLE CATAGORY RECYCLE)

BAG RACK SOFTDROPTM
Cans:520 cans (0.33L)400 cans (0.33L)
Plastic bottles:350 bottles (0.5L)250 bottles (0.5L)
Plastic bottles:150 bottles (1.5L)110 bottles (1.5L)
Glass:N/A170 bottles (0.6L)
Based on bin size: W:600 x D:800 x H:850 mm


Container Specifications

Material types

Non-refillable plastic bottle, can and glass (no compaction). Refillable bottles

can be accepted with the SoftDrop™ bin

Container size
Diameter 50-115 mm, Height 80-380 mm.

Speed Capability

Shape & barcode reading
Up to 15 containers per minute
EnvironmentalHumidity
Maximum 90% relative humidity, non-condensing.
Temperature
0°C to +40°C (32°F - 104°F)
The machine has been designed for indoor use only.
ElectricalPower consumption
H-10: Idle 50W, Max(approx.) 70W
H-11: Idle 50W, Max(approx.) 300W
Nominal voltage
100-240 V AC 1-phase w/ground
50/60 Hz
Fuse
min 10A
ConnectivityLAN (Ethernet TCP/IP)
ConfigurationsInternal SoftDrop™ (H-11)or freestanding rack Front unload;
Up and down seperated storage
RecognitionShape recognition
Barcode recognition

User interaction

21.5'' touch display
Resolution
WSUVGA+(WSUGA/HDTV)
1920(H) ×1080(W)
Support color:
16.7M (RGB 8-bits)
User guidance in display
SoftwareBarcode database management
Advertising and media management
Alarm management
Reports management
Customers management
Maintenance management
AccessoriesAdvertising light box*
QR reader*
RFID card reader*
Magnetic card reader*
NFC reader*
Wireless communication module
Power consumption metering module
Electronic receipt (POS)
*Non-standard accessories


We reserve the right to make changes to specifications without prior notice. While every effort has been made to ensure all information contained in this document is accurate, TOMRA assumes no liability for any errors, inaccuracies or omissions that may occur.
